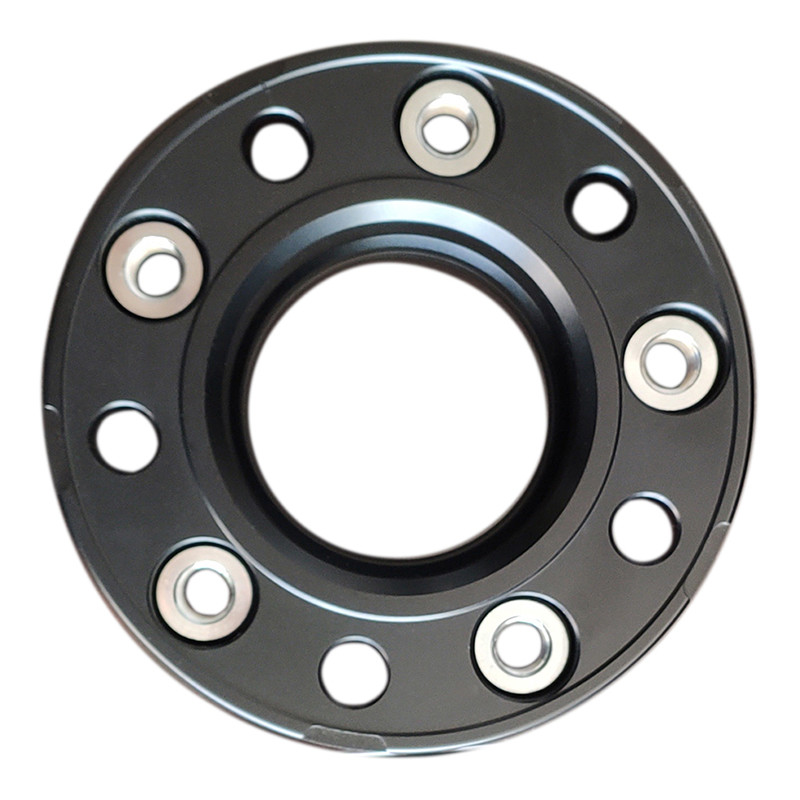

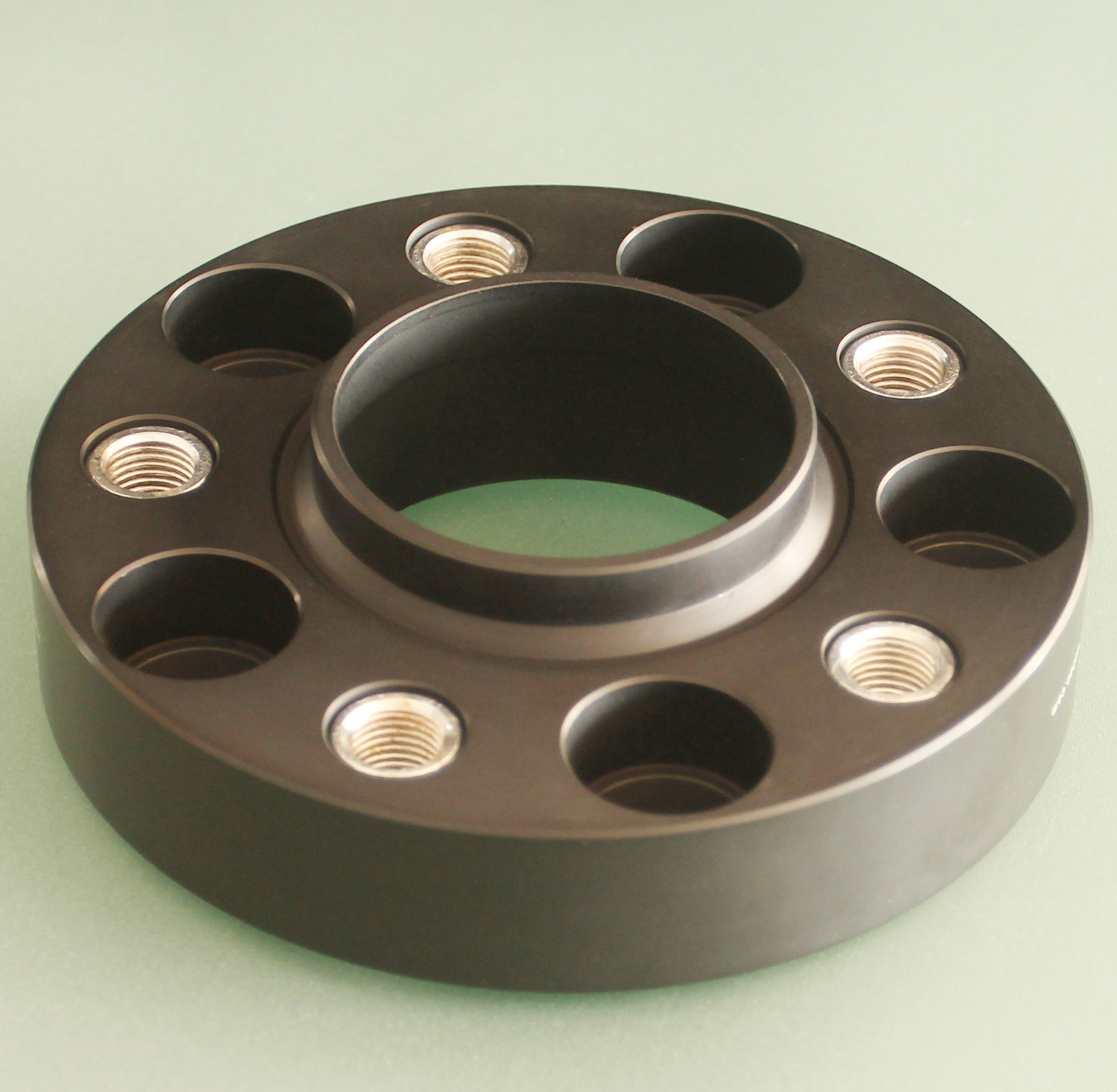

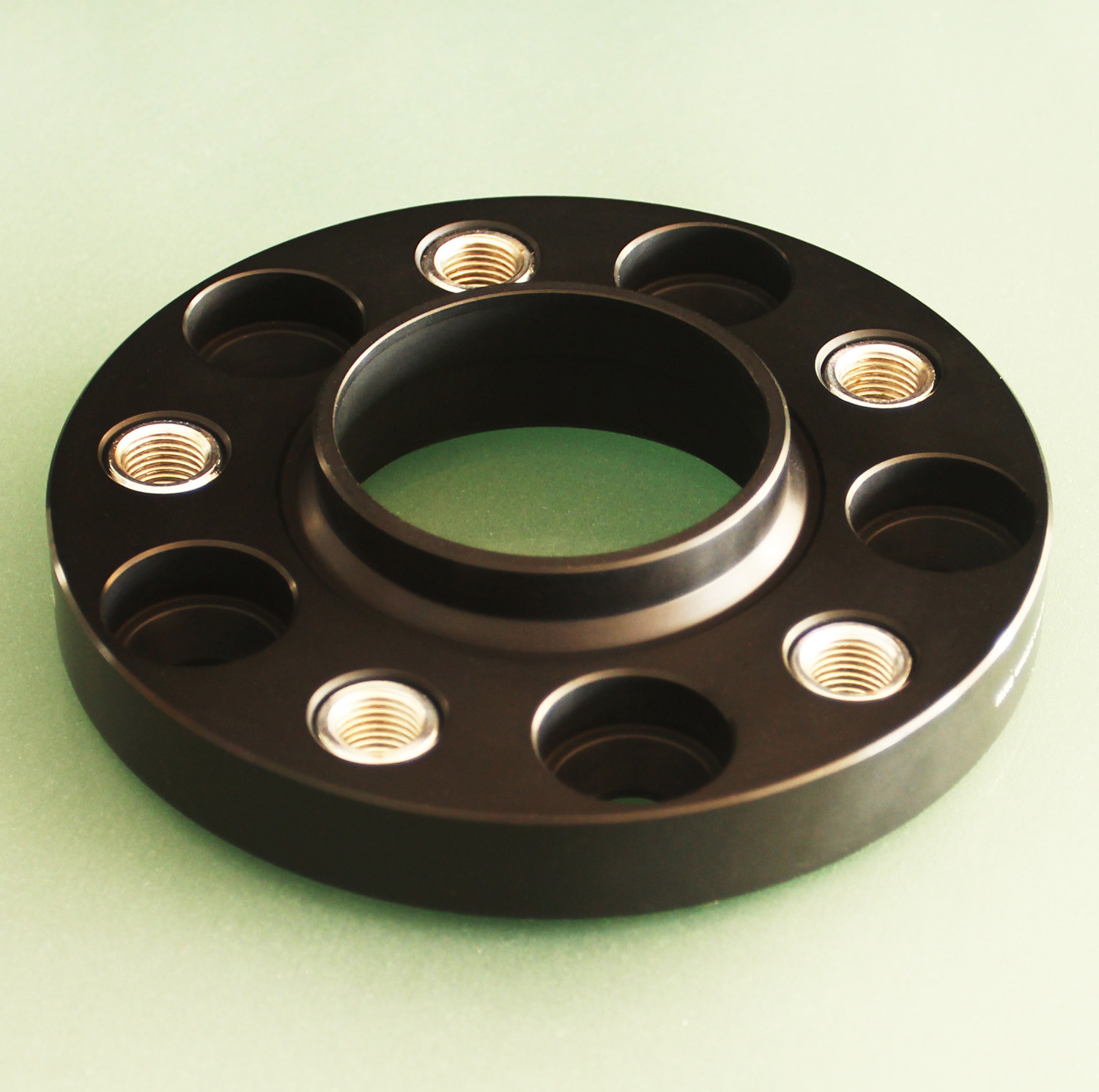

RCTuning’s BMW wheel spacers are made of forged billet aluminum alloy and
designed to provide perfect mounting by proper extended wheel
bolts, simple and easy bolt-on handling. With wheel spacers
mounted, not only handling and lateral stability improved, but
enhancing the look of your car, aggressive and muscular.
All RCTuning’s wheel spacers are cleverly designed to match factory hub and
wheel center bore perfectly for vibration-free mounting. Pry tabs
are possible on RCTuning’s wheel spacers for aiding later removal.
Regular widths: 25mm, 30mm and plus
Package: 1 pair (2PCs) with 10 locking wheel bolts per package
Customized sizes & anodized color are welcome.
Custom LOGO: laser engraved LOGO available.
BMW E Chassis Wheel Spacer Applications
| BMW E Chassis Wheel Spacer Applications |
| Series | Chassis Code | Year | Car Models |
| 1 Series | E82, E88 | 2008 ~ 13 | 128i, 135i, M1, 1M Coupe |
| 3 Series | E30 | ~ 1992 | M3 |
| E36 | ~ 1999 | 318i, 318is, 318ti, 325i, 325is, 328i, 328is, M3 |
| E46 | 1999 ~ 05 | 323ci, 323i, 325ci, 325i, 325xi, 328ci, 328i, 330ci, 330i, 330xi,
M3 |
| E90, E91, E92, E93 | 2006 ~ 13 | 325i, 325xi, 328i, 328xi, 330i, 330xi, 335d, 335i, 335is, 335xi, M3 |
| 5 Series | E28, E34 | ~ 1995 | 525i, 528e, 530i, 535i, 535is, 540i, M5 |
| E60, E61 | 2004 ~ 10 | 525i, 525xi, 528i, 530i, 530xi, 535i, 535xi, 545i, 550i, M5 |
| 6 Series | E24, E63, E64 | 2005 ~ 11 | 633i, 635i, 645ci, 650i, M6 |
| 7 Series | E23, E32, E38 | ~ 2001 | 730i, 730il, 733i, 735i, 735il, 740i, 740il, 750i, 750il |
| 8 Series | E31 | ~ 1997 | 840ci, 840i, 850ci, 850i |
| X1 | E84 | 2016 ~ 19 | All |
| M-Coupe | | 1998 ~ 02 | Typ MRC |
| M-Roadster | | 1998 ~ 02 | Typ MRC |
| Z3 | | 1996 ~ 02 | including M-Coupe and Roadster |
| Z4 | E85, E89, M85 | 2003 ~ 16 | including M-Coupe and Roadster |
| Z8 | E52 | 2000 ~ 03 | |
However, some exceptions exist.
| Exceptions |
| Series | Chassis Code | Year | Car Models | Take Spacer Code | Take Bolt |
| 3 Series | E30 | ~ 1990 | 318, 325, | | |
| 5 Series | E39 | 1999 ~ 03 | 525, 528, 530, 540, M5 | TK20649 | WBB Series |
| 7 Series | E65 | 2002 ~ 08 | 745, 750,760 | TK30646 | WBE Series |
| X3 | E83 | 2004 ~ 10 | |
| X5 | E53 | 2000 ~ 06 | |
| E70 | 2007 ~ 13 | | TK20649 | WBA Series
|
BWM F Chassis Wheel Spacer Applications
| BMW F Chassis Wheel Spacer Applications |
| Series | Chassis Code | Year | Car Models |
| 2 Series | F22 F23 | 2014 ~ | Coupe, Convertible & M235, M240 |
| F87 | 2016 ~ | M2 |
| 3 Series | F30 F31 F34 | 2012 ~ 17 | All |
| F80 F82 | 2015 ~ 19 | M3 CS Coupe / Sedan |
| 4 Series | F32 F33 F36 | 2014 ~ 20 | All |
| F82 F83 | 2014 ~ 19 | M4 Cabrio / Coupe / CS / GTS |
| 5 Series | F07 F10 | 2010 ~ 16 | 528i, 535d, 535i, 550i Gran Turismo & xDrive Gran Turismo |
| 6 Series | F06 F12 F13 | 2012 ~ 19 | 640/650 Coupe & Convertible & M6 |
| 7 Series | F01 F02 | 2008 ~ 15 | 740, 750, 760 |
| X3 | F25 | 2011 ~ 17 | All |
| X4 | F26 | 2016 ~ 18 | X4 xDrive28i / xDrive35i / M40i |
| X5 | M7X | 2010 ~ 13 | X5 M | Some exceptional models take spacer # TK20649 |
| X6 | X70 M7X | 2007 ~ 14 | X6, X6 M |
Exceptions:
| Series | Chassis Code | Year | Car Models | Take Spacer # |
| X1 | F48 | 2016 ~ 19 | X1 sDrive28i / xDrive28i | TK20434 |
| X2 | F39 | 2018 ~ 20 | X2 xDrive28i | TK20434 |
| X5 | F15 F85 | 2014 ~ 18 | X5 M, X5 xDrive | TK20649 |
| X6 | F16 F86 | 2014 ~ 19 | X6 M, X6 xDrive | TK20649 |
| M5 | F90 | 2018 ~ 19 | All | TK20434 |
Wheel Spacer Specifications
Center Bore: 72.6 mm F & R
Bolt Pattern: 5x120
Wheel Bolt: Cone seat 10.9 grade electrophoresis black M12x1.5 for
E chassis & M14x1.25 for F chassis
Spacer Material: Forged Billet Aluminum
